Network Notepad Professional Edition

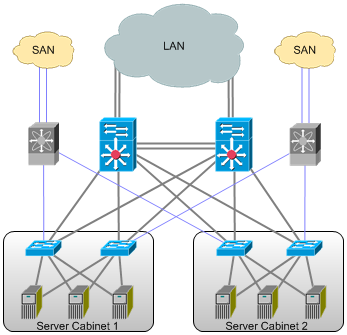

Network Notepad Professional Edition is a commercial application for creating interactive network diagrams.

It runs on Microsoft Windows 11, 10, 8, 7, Vista, XP and 2000.
Features include:

  • Tabbed multi-page diagrams.
  • Improved graphics.
  • Customizable shapes.
  • Grouping and Locking.
  • Rotate Objects and Text.

Find out more here.
How to Buy.

Version 1.4.10 is now available. Download.



Network Notepad Enterprise Edition


Includes all the features of Network Notepad Professional Edition plus new controls which enables multiple users to collaborate on network diagrams and a 64-bit option for larger diagrams.

It runs on Microsoft Windows 11, 10, 8, 7, Vista, XP and 2000.

Find out more here.
How to Buy.

Version 1.1.14 is now available. Download.

Enterprise


Network Notepad Client/ Server


Includes all the features of Network Notepad Enterprise and Professional Editions plus the option to connect to a Network Notepad Server to get node status information.

It runs on Microsoft Windows 11, 10 and older Windows versions which support .Net Framework 4.8

Find out more here.
How to Buy.

Client Version 1.0.21 beta is now available.
Download.

Server Version 1.0.44 beta is now available.
Download.

Client Features


NNMonitor


NNMonitor is an add-on Ping utility for Network Notepad Professional Edition and Enterprise Edition, similar to NNPing, but monitoring all of the nodes in a document. It supports logging and email alerts.
More information here.

Version 1.0.14 is now available. Download.


NNMonitor


Network Notepad Freeware Edition


Network Notepad is a freeware app for creating interactive network diagrams.

  • Runs on Microsoft Windows 10, 8, 7, Vista, XP, 2000
  • Point-and-Click Telnet/ Browse/ User-definable Network Management.
  • Simple Drag and Drop interface.
  • Open, Text Based File Format.
  • Printing.
  • Linked Diagrams.
  • Flow Charts.

Version 6.1.6 is now available. Download.




CDP Neighbor Tool

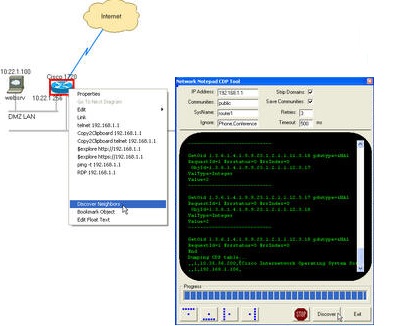

CDP Tool is an add-on for Network Notepad (all editions) which adds the ability to discover and draw what is connected to devices in your network by retrieving the CDP Neighbor table from the selected device.

Find out more here

 CDP Neighbor Tool
